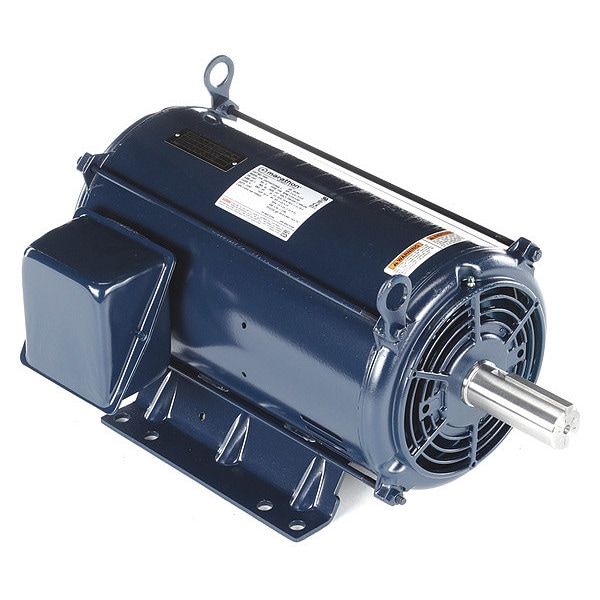

3-Phase Belt Drive Motor, 3 1/3, 7 1/2 HP, 254T Frame, 200-230V AC Voltage, No. of Speeds: 2

  • Mfr # 254TTDX7278
  • Zoro # G9827912
product price:
$
1,491.99
/ea
Additional $220.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
3 1/3, 7 1/2
No. of Speeds
2
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
254TTDX7278
Zoro #
G9827912
UPC #
-
Country of Origin
United States
Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
3 1/3, 7 1/2
No. of Speeds
2
RPM Range
1,701-1,800
Nameplate RPM
1,770/1,180
Voltage
200V AC to 230V AC
Frame
254T
Motor Mounting Type
Rigid Base
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Frame Material
Steel
Standards
CSA (LR2025), UL (E49747)
Ins. Class
B
Motor Bearings
Ball
Max. Ambient Temp.
104 Degrees F
Motor Shaft Rotation
CW/CCW
Full Load Amps
20.8-18.4,11-10.2 A
Duty
Continuous
Nominal Efficiency
87.5 %
Hz
60 Hz
Motor Shaft Design
Keyed
Duty Cycle
Continuous
Usable @ 200V
Yes
Weight
175 lb
Usable @ 208V
Yes
Finish
Blue Epoxy
Shaft Design
Keyed
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Drive Type
Belt Drive
Frequency
60 Hz
Product Type
Fan and Blower Motor
Full Load Current @ 60 Hz
20.8-18.4 A
Bearing Type
Ball
Application
Fan/Blower
Nameplate Service Factor @ 60 Hz
1.15

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 3 1/3 hp, 7 1/2 hp HP, Nameplate RPM 1,770/1,180 RPM, No. of Speeds 2, Voltage 200-230V AC, 20.8-18.4 A Full Load Amps, 254T Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
