Shop MARATHON

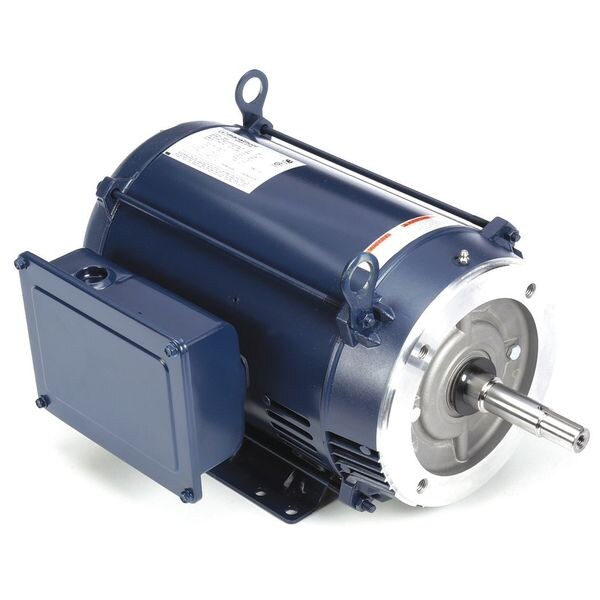

Close-Coupled Pump Motor5 HP, 1730 rpm

  • Mfr # 213TCDW7027

  • Zoro # G5681505

product price:  $1,061.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
HP
5
RPM Range
1,701-1,800
Nameplate RPM
1,730
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
213TCDW7027
Zoro #
G5681505
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
19 15/16 in
Shaft Dia.
7/8 in
Shaft Length
4 1/4 in
Length Less Shaft
15 11/16 in
Bolt Circle Dia.
7 1/4 in
Height
11 in
Body Dia.
9.5 in
Body Diameter
9.5 in
Frame Size
213JM
Shaft Diameter
7/8 in
Bolt Circle Diameter
7 1/4 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Capacitor-Start
HP
5
RPM Range
1,701-1,800
Nameplate RPM
1,730
Voltage
230V AC
Frame
213JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Bearings
Ball
Ins. Class
F
Motor Frame Material
Steel
Phase
Single
Motor Application
Pump
Motor Enclosure Design
Open Dripproof
Duty
Continuous
Motor Thermal Protection
None
Motor Shaft Design
Keyed
Full Load Amps
28 A
Standards
CE Mark, CSA Certified, UL Recognized
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Nominal Efficiency
78.5 %
Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Motor Efficiency Group
Standard Efficient
Inverter Rated
Not Inverter Rated
Motor Sub Application
Close-Coupled Pump
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
No. of Speeds
1
Weight
115 lb
NEMA Design
L
Conduit Box Location
Exterior
Conduit Box Position
F1
Shaft Type
JM Threaded
Full Load Current @ 60 Hz
28.0 A
Bearing Type
Ball
Shaft Design
Keyed
NEMA Design Class
L
Application
Pump
Efficiency Rating
Standard Efficiency (IE1)
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.15
Product Type
Pump Motor
Shaft Thread Type
JM
Motor Enclosure Type
Open Drip Proof
Insulation Class
F

Description

Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 213JM, Hz 60 Hz, Full Load Amps 28.0, Height 11 in, HP 5, Ins. Class F, Inverter Rated Not Inverter Rated, Length Less Shaft 15 11/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof
