Shop MILLER ELECTRIC

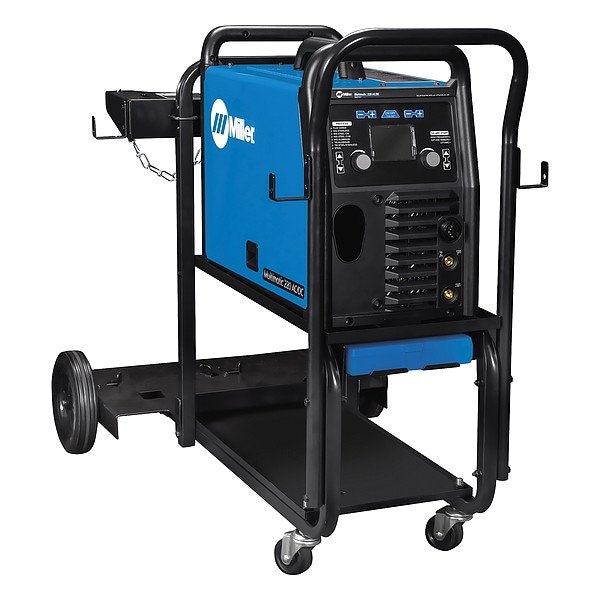

Multiprocess Welder, Multimatic 220 AC/DC, Phase Single-Phase , 110/115/120V AC, 220/230/240V AC

  • Mfr # 951000070

  • Zoro # G609439963

product price:
$
6,518.99
/ea
Additional $215.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Series
Multimatic 220 AC/DC
Phase
Single
Input Voltage
110/115/120/220/230/240V AC
Includes
10 ft Work Cable with Clamp and 25 mm Dinse-Style Connector, 10 ft MDX-100 MIG Welding Gun, 12.5 ft Weldcraft A-150 (WP-17) TIG Torch with 25mm Dinse-Style Connector, 13 ft Cable Electrode Holder and 25 mm Dinse-Style Connector, 6.5 ft Power Cord and MVP Adapter Plugs for 120V and 240V, Hook-and-Loop Cord Wraps, 229895 Material Thickness Gauge, Multimatic(R) 220 AC/DC, Quick Select Drive Roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) Solid Wire, and .030/.035 (0.8/0.9 mm) Flux-Cored Wire, RFCS-14 HD foot control with 20 ft (6 m) cord, Spool of Hobart(R) .030 in (0.8 mm) solid wire, Two Argon and AR/CO2 mix regulator/flow gauge with hoses, Two contact tips for .030 in (0.8 mm) wire
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
951000070
Zoro #
G609439963
UPC #
715959702973
Country of Origin
United States

Dimensions

Maximum Wire Diameter
0.035 in (Solid), 0.045 in (Flux-Cored)
For Minimum Material Thickness
18 ga (Aluminum), 24 ga (Steel)
Minimum Wire Diameter
0.024 in (Solid), 0.03 in (Flux-Cored)
Overall Width
11.25 in
For Maximum Material Thickness
3/8 in (Aluminum), 3/8 in (Steel)
Overall Depth
21.5 in
Overall Height
17.5 in
For Aluminum Thickness - Maximum
3/8 in
Wire Diameter Flux-Cored - Maximum
0.045 in
For Steel Thickness - Maximum
3/8 in
Wire Diameter Aluminum - Maximum
0.4 in
For Aluminum Thickness - Minimum
18 ga
For Steel Thickness - Minimum
24 ga
Wire Diameter Aluminum - Minimum
0.35 in
For Stainless Steel Thickness - Maximum
3/8 in
Wire Diameter Solid - Maximum
0.035 in
For Stainless Steel Thickness - Minimum
26 ga
Wire Diameter Solid - Minimum
0.024 in
Wire Diameter Flux-Cored - Minimum
0.03 in

Details

Item
Multiprocess Welder
Series
Multimatic 220 AC/DC
Phase
Single
Input Voltage
110/115/120/220/230/240V AC
Includes
10 ft Work Cable with Clamp and 25 mm Dinse-Style Connector, 10 ft MDX-100 MIG Welding Gun, 12.5 ft Weldcraft A-150 (WP-17) TIG Torch with 25mm Dinse-Style Connector, 13 ft Cable Electrode Holder and 25 mm Dinse-Style Connector, 6.5 ft Power Cord and MVP Adapter Plugs for 120V and 240V, Hook-and-Loop Cord Wraps, 229895 Material Thickness Gauge, Multimatic(R) 220 AC/DC, Quick Select Drive Roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) Solid Wire, and .030/.035 (0.8/0.9 mm) Flux-Cored Wire, RFCS-14 HD foot control with 20 ft (6 m) cord, Spool of Hobart(R) .030 in (0.8 mm) solid wire, Two Argon and AR/CO2 mix regulator/flow gauge with hoses, Two contact tips for .030 in (0.8 mm) wire
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Weight
56 lb
MIG Welding Minimum Output Current
30 A
Polarity
AC/DC
Stick Welding Minimum Output Current
30 A
Plug Type
5-15P, 6-50P
Open Circuit Voltage
45 V DC
Remote Connection Type
14-Pin (Miller)
TIG Welding Maximum Output Current
210 A
Maximum Wire Feed Speed
600 in/min
For Wire Type
Flux-Cored, Solid
MIG Welding Output @ Duty Cycle
105 A @ 19.2 V, 60% (120 V), 170 A @ 21.5 V, 40% (240 V), 200 A @ 24 V, 20% (240 V)
Stick Welding Output @ Duty Cycle
200 A @ 28.4 V, 15% (240 V), 90 A @ 23.6 V, 40% (120 V)
TIG Arc Start Feature
Lift Arc Start
Stick Welding Maximum Output Current
200 A
TIG Welding Minimum Output Current
20 A
TIG Arc Control Feature
Adjustable AC Balance, Adjustable AC Frequency
For Material Type
Aluminum, Stainless Steel, Steel
Enhanced Process
Pulsed TIG (GTAW-P)
MIG Welding Maximum Output Current
230 A
Input Frequency
50/60 Hz
Model
951000070
Minimum Wire Feed Speed
60 in/min
Welding Mode
CC/CV
Pulse Frequency
150 pulses/second
TIG Welding Output @ Duty Cycle
130 A @ 15.2 V, 40% (120 V), 210 A @ 18.4 V, 20% (240 V)
Rated Output @ Duty Cycle (MIG)
105 A @ 19.2 V, 60% (120 V), 170 A @ 21.5 V, 40% (240 V), 200 A @ 24 V, 20% (240 V)
Amperage Stick - Maximum
200 A
Amperage TIG - Maximum
210 A
Amperage TIG - Minimum
20 A
Welding Power Source Type
CC/CV
Rated Output @ Duty Cycle (Stick)
200 A @ 28.4 V, 15% (240 V), 90 A @ 23.6 V, 40% (120 V)
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (TIG)
130 A @ 15.2 V, 40% (120 V), 210 A @ 18.4 V, 20% (240 V)
Amperage MIG - Maximum
230 A
Amperage Stick - Minimum
30 A
Amperage MIG - Minimum
30 A

Description

Multiprocess Welder, Series Multimatic 220 AC/DC, Input Voltage 110/115/120V AC, 220/230/240V AC, Phase Single-Phase, Welding Mode CC/CV, Polarity AC/DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 200 A, TIG Welding Maximum Output Current 210 A, MIG Welding Maximum Output Current 230 A, For Wire Type Flux-Cored, Solid
