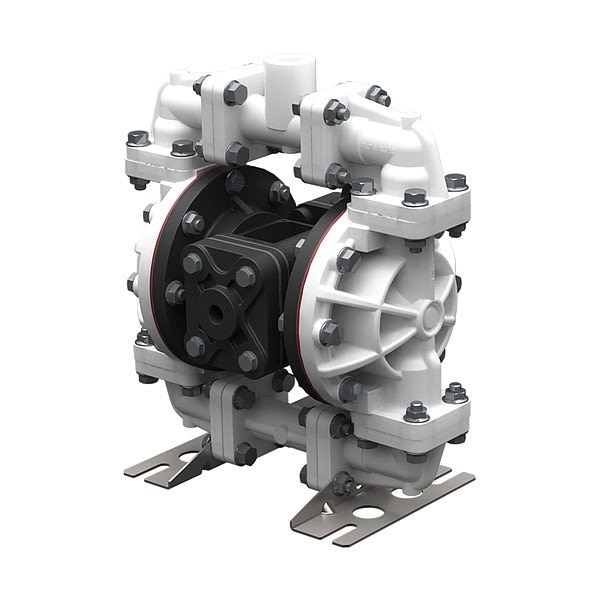

Air Operated Double Diaphragm Pump
Mfr # S05B2K2KPNS000.
Zoro # G311930574
product price: $2,431.99
/ea
Free Shipping & Returns
Key Features
Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene, PTFE
Valve Type
Ball
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
S05B2K2KPNS000.
Zoro #
G311930574
UPC #
-
Country of Origin
United States
Dimensions
Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Overall Length
7.1 in
Overall Height
10.6 in
Media Discharge Connection Size
1/2 in
Overall Width
10.1 in
Media Intake Connection Size
1/4 in
Solid Diameter (Maximum)
0.12 in
Description
Air Operated Double Diaphragm Pump, Air Consumption (Maximum) 16 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material PVDF, Diaphragm Material Santoprene, PTFE, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 14.3 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1/4 in, Media Intake Connection Type FNPT
