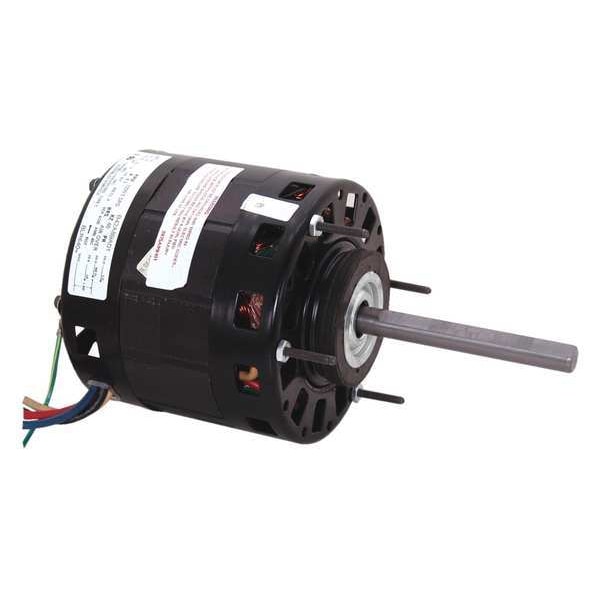

Century Motor, Sh Pole, 1/4 HP, 1050,115V, 42Y, OAO BLR6404 - main

Motor, Sh Pole, 1/4 HP, 1050,115V, 42Y, OAO

  • Mfr # BLR6404

  • Zoro # G2755961

product price: $180.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps
8.02 A
Ring to Ring Center
5 1/16 in
No. of Speeds
3
Includes
Resilient Mounting Ring
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BLR6404
Zoro #
G2755961
UPC #
-
Country of Origin
Mexico

Dimensions

Resilient Ring Dia.
2 1/2 in
Shaft Dia.
1/2 in
Bolt Circle Dia.
4 7/16 in
Shaft Length
4 1/2 in
Stud Size
#10-32
Body Dia.
5 in
Length Less Shaft
5 7/16 in
Overall Length
8 13/16 in
Lead Length
25 in

Details

Full Load Amps
8.02 A
Ring to Ring Center
5 1/16 in
No. of Speeds
3
Includes
Resilient Mounting Ring
Phase
Single
Application
Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers, A Wide Range of Other Shaft Mounted Fan and Blower Equipment
Motor Sub Application
Direct Drive Fan/Blower
Motor Bearings
Sleeve
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Stud Location
Shaft End
Motor Mounting Type
Ring/Stud
Standards
CSA, UL
Motor Application
HVAC/R
Motor Shaft Rotation
CCWLE
HP
1/4
Voltage
115V AC
Item
Direct Drive Blower Motor
Duty
Continuous
Motor Design
Shaded Pole
Motor Shaft Design
Flat
Motor Mounting Position
Horizontal
Ins. Class
A
Capacitor Required
No
Mounting Stud Pattern
2-1/4 in x 3-7/8 in
Motor Service Factor
1
Nameplate RPM
1,050
RPM Range
1,001-1,100
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Motor Thermal Protection
Auto
Frame
42Y
Motor Enclosure Design
Open Air-Over
Mounting Holes
4
Stud Quantity
4
Number of Shafts
1
Usable @ 208V
No
Weight
11 lb
Motor Frame Material
Steel
Usable @ 200V
No
Number of Speeds
3
Mounting
Ring

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/4 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 3, Voltage 115V AC, 8.02 A Full Load Amps, 42Y Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
