Shop DAYTON

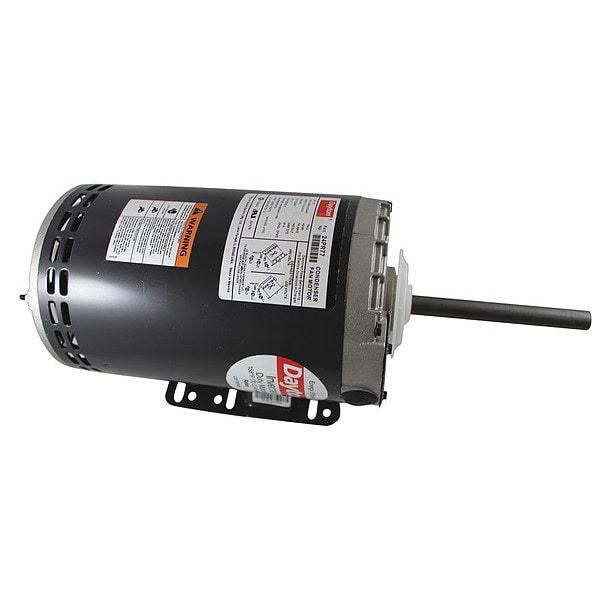

Condenser Fan Motor, 1 hp

  • Mfr # 24PR77

  • Zoro # G5358114

product price:
$
960.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24PR77
Zoro #
G5358114
UPC #
190735194324
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 5/8 in
Body Dia.
5 5/8 in
Length Less Shaft
10 3/4 in
Overall Length
16 3/4 in
Lead Length
6 in
Frame Size
56YZ
Shaft Diameter
5/8 in
Wire Rope Length
16 3/4 in
Body Diameter
5.6 in
Length
16 3/4 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
T-Stat
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
850
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Bearings
Ball
Nominal Efficiency
77 %
Motor Shaft Design
Flat
Duty
Continuous
Ins. Class
F
Application
Commercial Air Conditioners
Standards
CSA 258525, UL E47479
Full Load Amps
5.0-5.0/2.5 A
Motor Service Factor
1
Features
Inverter Duty Windings
Hz
60 Hz
Duty Cycle
Continuous
Inverter Rated
Yes
Mounting
Rigid Base
Number of Speeds
1
Sub Application
Condenser Fan
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Flat
Mounting Position
Vertical Shaft Up
Product Type
Condenser Fan Motor
Insulation Class
F
Inverter Rating
Inverter Rated
Motor Enclosure Type
Open Air Over
Drive Type
Direct Drive
Bearing Type
Ball
Ambient Temperature - Maximum
70 Degrees C
Full Load Current @ 60 Hz
5.0-5.0/2.5 A

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.0-5.0/2.5 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
