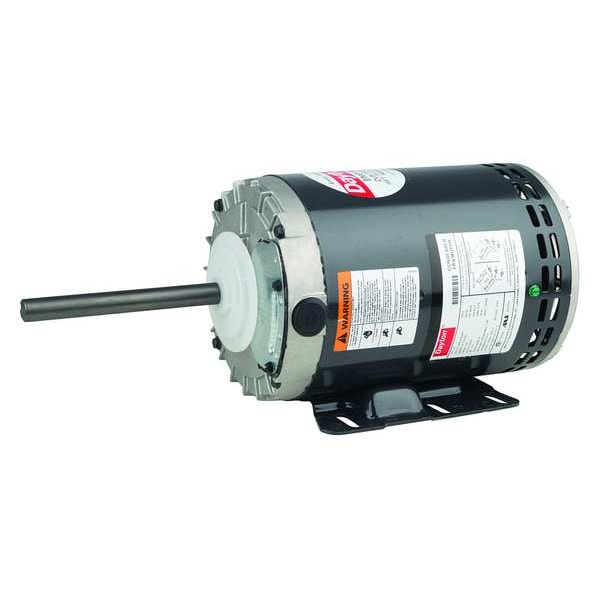

Condenser Fan Motor, 1 hp

  • Mfr # 24PR78
  • Zoro # G5358096
product price:
$
520.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24PR78
Zoro #
G5358096
UPC #
190735194331
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 5/8 in
Overall Length
15 3/4 in
Body Dia.
5 5/8 in
Length Less Shaft
9 3/4 in
Lead Length
6 in
Wire Rope Length
15 3/4 in
Frame Size
56YZ
Body Diameter
5.6 in
Shaft Diameter
5/8 in
Length
15 3/4 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
T-Stat
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Features
Inverter Duty Windings
Ins. Class
F
Full Load Amps
4.3-4.3/2.1 A
Application
Commercial Air Conditioners
Nominal Efficiency
83 %
Duty
Continuous
Standards
CSA 258525, UL E47479
Motor Shaft Design
Flat
Motor Bearings
Ball
Hz
60 Hz
Motor Service Factor
1
Inverter Rated
Yes
Duty Cycle
Continuous
Mounting
Rigid Base
Product Type
Condenser Fan Motor
Inverter Rating
Inverter Rated
Mounting Position
Vertical Shaft Up
Ambient Temperature - Maximum
70 Degrees C
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Nameplate Service Factor @ 60 Hz
1
Number of Speeds
1
Full Load Current @ 60 Hz
4.3-4.3/2.1 A
Frequency
60 Hz
Bearing Type
Ball
Insulation Class
F
Sub Application
Condenser Fan
Shaft Design
Flat

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 4.3-4.3/2.1 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
