Shop DAYTON

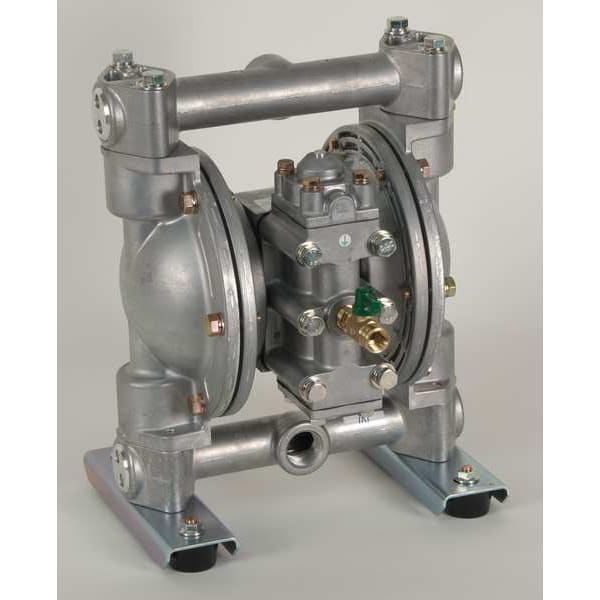

Double Diaphragm Pump, Aluminum, Air Operated, Buna N, 32 GPM

  • Mfr # 22A592

  • Zoro # G6077942

product price:
$
1,276.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
22A592
Zoro #
G6077942
UPC #
190735168394
Country of Origin
Japan

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
1 yr
Overall Length
8 in
Overall Height
12.6 in
Overall Width
9.8 in
Media Intake Connection Size
3/4 in
Media Discharge Connection Size
3/4 in
Solid Diameter (Maximum)
0.06 in
Wire Rope Length
8 in
Length
8 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
Air Consumption (Maximum)
45 scfm
Air Intake Connection Type
FNPT
Check Seat Material
Aluminum
Diaphragm Material
Buna-N
Media Temperature (Maximum)
180 Degrees F
Media Temperature (Minimum)
10 Degrees F
Operating Pressure (Maximum)
100 psi
Self-Priming Wet
28 ft
Pump Operation Type
Air
Includes
Ball Valve
Self-Priming Dry
18 ft
For Use With
Pumps are Fully Groundable to Prevent Static Discharge. CSA Certified for Operation Using Natural Gas. A Primary Application is for Use In Circulating Gylcol, Coolants and Petroleum Based Fluids.
Standards
CSA Certified
Inlet/Outlet
3/4 in
Media Discharge Connection Type
NPT
Air Intake Pressure (Maximum)
100 psi
Viscosity (Maximum)
40,000 cps
Feet of Head (Maximum)
231 ft
Flow Rate @ 20 psi
16 gpm
Flow Rate @ 60 psi
25 gpm
Manifold Connection Type
NPT
Wetted Housing Material
Aluminum
Flow Rate @ 40 psi
22 gpm
Media Intake Connection Type
NPT
Flow Rate (Maximum)
32 gpm
Mounting Hardware Material
Steel
For Use With Potable Systems
No
Priming
Self-Priming
Flow Rate @ 80 psi
26 gpm
Media Intake Location
Bottom
Media Discharge Location
Top
Flow Rate @ 100 psi
29 gpm
Duty Cycle
Continuous
Diaphragm Base Material
Buna-N
Center Section Material
Aluminum
Manifold Connection Standard
NPT
Chemical Compatibility
Antifreeze, Calcium Carbonate, Detergents, Diesel, Motor Oil, Water
Manifold Port Connection Type
Single Port
Includes Clean In Place Technology
No Clean In Place Included
Displacement Per Stroke
0.08 gal
Fluid Chamber Assembly Type
Bolted
Material Conductivity
Conductive
Wetted Body Material
Aluminum
Diaphragm Reinforcement
Fabric Reinforced
Media Discharge Port Configuration
Center Horizontal
Includes Solenoid
No Solenoid Included
Media Intake Port Configuration
Center Horizontal

Description

Double Diaphragm Pump, Air Consumption (Maximum) 45 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material Aluminum, Diaphragm Material Buna-N, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 32 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3/4 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 3/4 in, Media Intake Connection Type FNPT, Media Intake Location Bottom
