Shop GRACO

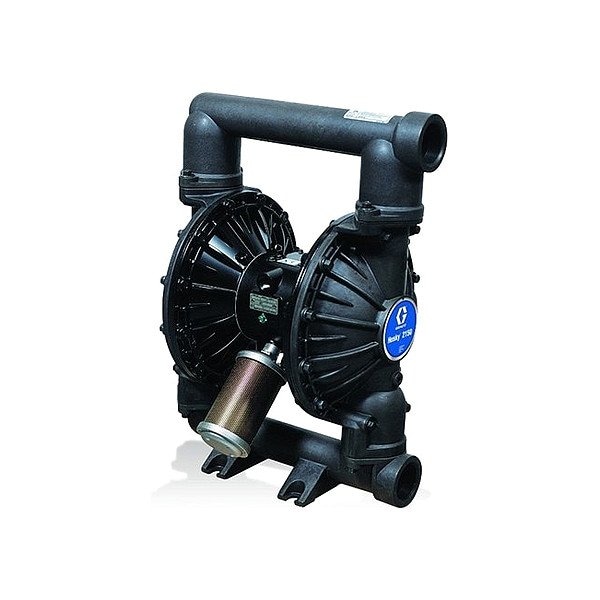

Diaphragm Pump, 1/2in NPT, 150 gpm

  • Mfr # DF3311

  • Zoro # G116518571

product price:
$
5,136.99
/ea
Free Shipping & Returns

Key Features

Flow Rate (Maximum)
150 gpm
Media Discharge Location
Side
Pump Operation Type
Air
Media Intake Connection Size
2 in
Media Intake Location
Side
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DF3311
Zoro #
G116518571
UPC #
633955337916
Country of Origin
United States

Dimensions

Media Intake Connection Size
2 in
Wire Rope Length
17.5 in
Overall Width
12.5 in
Solid Diameter (Maximum)
0.25 in
Overall Height
23.6 in
Air Intake Connection Size
1/2 in
Manufacturers Warranty Length
2 yr
Media Discharge Connection Size
2 in
Overall Length
17.5 in
Length
17.5 in

Details

Item
Diaphragm Pump
Flow Rate (Maximum)
150 gpm
Media Discharge Location
Side
Pump Operation Type
Air
Media Intake Location
Side
Manifold Port Connection Type
Single Port
Flow Rate @ 120 psi
150 gpm
Media Discharge Connection Type
NPT
NPSHr
20 ft of head
Valve Type
Ball
Air Intake Pressure (Maximum)
120 psi
Pump Assembly Type
Bolt
Wetted Body Material
Aluminum
Series
Husky 2150
Air Intake Connection Type
NPT
Viscosity (Maximum)
20,000 cps
Media Temperature (Maximum)
180 Degrees F
Valve Material
PTFE
Center Section Material
Aluminum
Standards
ATEX Certified, CE Marked
Chemical Compatibility
Antifreeze, Motor Oil, Water
Media Intake Connection Type
NPT
Air Consumption (Maximum)
175 scfm
Check Seat Material
Stainless Steel
Operating Pressure (Maximum)
120 psi

Description

Diaphragm Pump, Air Consumption (Maximum) 175 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT, Check Seat Material Stainless Steel, Diaphragm Material EPDM, PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 150 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPT, Media Discharge Location Side, Media Intake Connection Size 2 in, Media Intake Connection Type NPT, Media Intake Location Side
