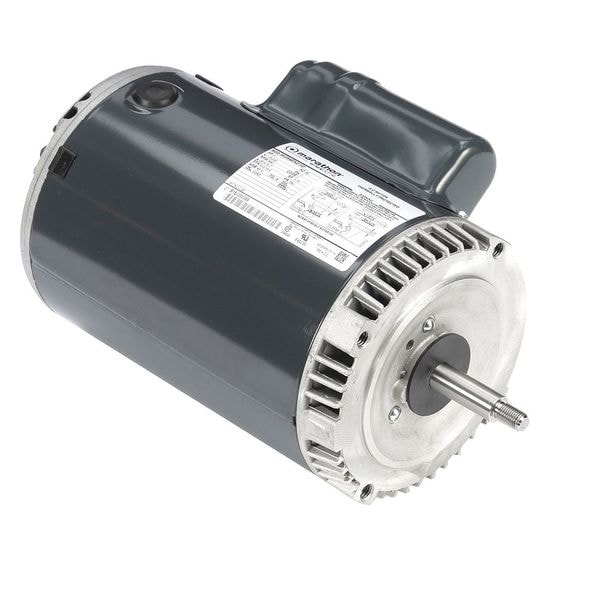

Motor, Cap St, 3 HP, 3450,115/230V, 56J, ODP

  • Mfr # 5KCR48TN2174T
  • Zoro # G2050711
product price:
$
675.99
/ea
Free Shipping & Returns

Key Features

Motor Bearings
Ball
Motor Sub Application
Jet Pump
Body Dia.
6.4 in
Motor Enclosure Design
Open Dripproof
Max. Ambient Temp.
40 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KCR48TN2174T
Zoro #
G2050711
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
6.4 in
Shaft Length
2 3/8 in
Shaft Dia.
5/8 in
Overall Length
13 3/16 in
Bolt Circle Dia.
4 1/2 in
Length Less Shaft
10 3/4 in
Bolt Circle Diameter
4 1/2 in
Shaft Diameter
5/8 in
Frame Size
56J
Body Diameter
6.4 in
Wire Rope Length
13 3/16 in
Length
13 3/16 in

Details

Motor Bearings
Ball
Motor Sub Application
Jet Pump
Motor Enclosure Design
Open Dripproof
Max. Ambient Temp.
40 Degrees C
Motor Design
Capacitor-Start/Run
Motor Shaft Design
Threaded
Duty
Continuous
Hz
60 Hz
Phase
Single
Item
Jet Pump Motor
Nameplate RPM
3,450
Frame
56J
HP
3
Motor Mounting Position
All Angle
Motor Service Factor
1.15
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Motor Thermal Protection
Auto
Includes
Shaft Slinger
Motor Shaft Rotation
CCWSE
Full Load Amps
29.4/14.7 A
RPM Range
3,001-3,600
Motor Mounting Type
Face
Motor Application
Pump
Standards
CSA Certified, UL Recognized
Ins. Class
B
Shaft Material
Stainless Steel
Nominal Efficiency
78.5 %
Voltage
115V AC, 230V AC
Duty Cycle
Continuous
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Weight
38 lb
No. of Speeds
1
Conduit Box Position
F2
Number of Speeds
1
Shaft Type
Threaded 7/16-20 UNF-2A
Ambient Temperature - Maximum
40 Degrees C
Application
Pump
Motor Enclosure Type
Open Drip Proof
Mounting Position
All Angle
Frequency
60 Hz
Shaft Design
Threaded
Number of Wires
7
Full Load Current @ 60 Hz
29.4/14.7 A
Frame Material
Steel
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
B
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Pump Motor
Sub Application
Centrifugal Pump, Jet Pump

Description

Jet Pump Motor, Body Dia. 6.4 in, Bolt Circle Dia. 4 1/2 in, Conduit Box Location Exterior, Conduit Box Position F2, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 29.4/14.7, HP 3, Includes Shaft Slinger, Ins. Class B, Length Less Shaft 10 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
