  11. WashdownMotor, 2hp, 1745RPM, 230/460VAC

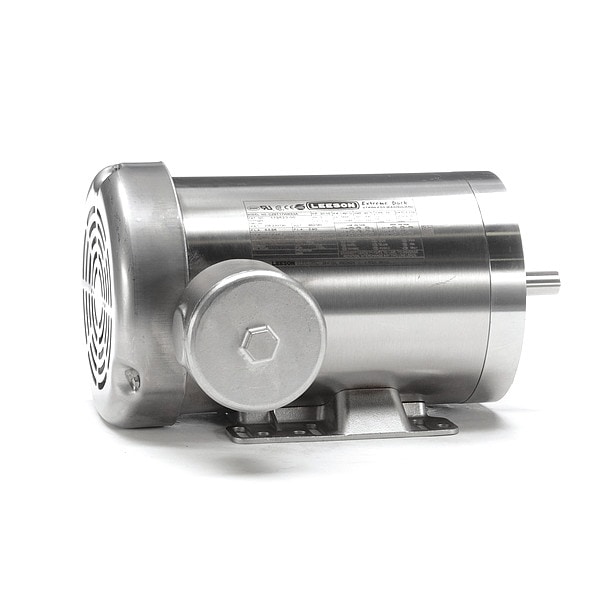

Leeson WashdownMotor, 2hp, 1745RPM, 230/460VAC 119523.00 - main

WashdownMotor, 2hp, 1745RPM, 230/460VAC

  • Mfr # 119523.00

  • Zoro # G400722950

product price: $2,379.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56HC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
119523.00
Zoro #
G400722950
UPC #
691720052969
Country of Origin
United States

Dimensions

Bolt Circle Dia.
5 7/8 in
Overall Length
13 3/16 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
11 1/4 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Body Dia.
7.3 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56HC
Motor Frame Material
Stainless Steel
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan Cooled
Shaft Material
Stainless Steel
Weight
67 lb
Standards
CE, CSA Certified, UL Recognized
Motor Service Factor
1.2
Full Load Amps @ 50Hz
2.9 A
Voltage @ 50Hz
460V AC
Removable Base
No
Motor Mounting Type
C-Face, Rigid Base
Nameplate RPM
1,745 RPM
Hz
60/50 Hz
Ins. Class
F
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Motor Bearings
Ball
Bearing Protection
Shaft Shields
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
NEMA Design
B
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Full Load Amps
5.8/2.9 A
Inverter Rated
Inverter Rated
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Drain Plugs
(1) in Conduit Box
Finish
Unfinished
Motor Application
General Purpose
Inverter Rating
6:1
Endshield Material
Stainless Steel
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
