Shop GRACO

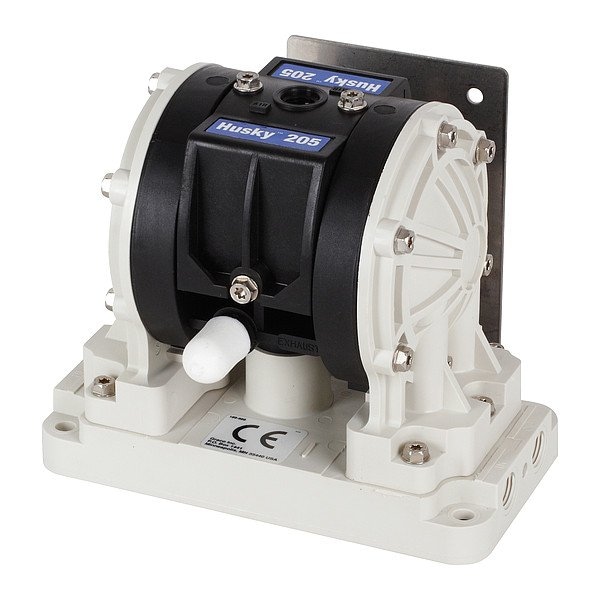

Diaphragm Pump, 1/4in NPT, 5 gpm

  • Mfr # D150A1

  • Zoro # G516537530

product price:
$
1,081.99
/ea
Free Shipping & Returns

Key Features

Media Discharge Connection Size
1/4 in
Air Intake Connection Size
1/4 in
Viscosity (Maximum)
500 cps
Valve Type
Ball
Media Discharge Connection Type
NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D150A1
Zoro #
G516537530
UPC #
633955754256
Country of Origin
United States

Dimensions

Media Discharge Connection Size
1/4 in
Air Intake Connection Size
1/4 in
Wire Rope Length
6.8 in
Media Intake Connection Size
1/4 in
Manufacturers Warranty Length
2 yr
Overall Height
6 in
Overall Width
3.7 in
Solid Diameter (Maximum)
0.06 in
Overall Length
6.8 in
Length
6.8 in

Details

Item
Diaphragm Pump
Viscosity (Maximum)
500 cps
Valve Type
Ball
Media Discharge Connection Type
NPT
Media Intake Connection Type
NPT
NPSHr
10 ft of head
Valve Material
PTFE
Check Seat Material
PVDF
Operating Pressure (Maximum)
100 psi
Air Consumption (Maximum)
9 scfm
Flow Rate (Maximum)
5 gpm
Series
Husky 205
Manifold Port Connection Type
Single Port
Media Discharge Location
Side
Media Intake Location
Side
Pump Operation Type
Air
Flow Rate @ 100 psi
5 gpm
Standards
CE Marked
Air Intake Pressure (Maximum)
100 psi
Air Intake Connection Type
NPT
Media Temperature (Maximum)
180 Degrees F
Center Section Material
Polypropylene
Pump Assembly Type
Bolt
Wetted Body Material
PVDF
Chemical Compatibility
Antifreeze, Motor Oil, Water

Description

Diaphragm Pump, Air Consumption (Maximum) 9 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material PVDF, Diaphragm Material EPDM, PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 5 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/4 in, Media Discharge Connection Type NPT, Media Discharge Location Side, Media Intake Connection Size 1/4 in, Media Intake Connection Type NPT, Media Intake Location Side
