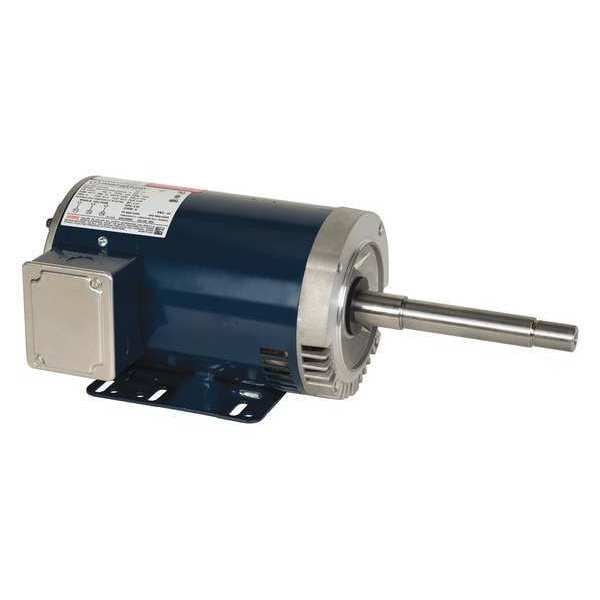

CC Pump Motor, 3-Phase, 7-1/2 HP, 3450 rpm

  • Mfr # 184TTDBD6012
  • Zoro # G8818871
product price:
$
938.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
7 1/2 hp
RPM Range
3,001-3,600
Nameplate RPM
3,510
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
184TTDBD6012
Zoro #
G8818871
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
7 3/8 in
Length Less Shaft
14 1/8 in
Overall Length
21 7/16 in
Shaft Dia.
7/8 in
Height
9 13/16 in
Bolt Circle Dia.
5 7/8 in
Frame Size
184JP
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
7/8 in
Wire Rope Length
21 7/16 in
Length
21 7/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
7 1/2 hp
RPM Range
3,001-3,600
Nameplate RPM
3,510
Voltage
230V AC, 460V AC
Frame
184JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Ins. Class
F
Inverter Rated
Inverter Rated
Max. Ambient Temp.
40 Degrees C
CC Number
CC003A
Motor Frame Material
Steel
Motor Enclosure Design
Open Dripproof
Motor Shaft Rotation
CW/CCW
Standards
CE Mark, CSA Certified, UL Recognized
Motor Thermal Protection
None
Duty
Continuous
Motor Sub Application
Close-Coupled Pump
Motor Shaft Design
Keyed
Motor Efficiency Group
NEMA Premium Efficient
Hz
60 Hz
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Frame Material
Steel
Motor Bearings
Ball
Motor Application
Pump
Full Load Amps
18.4/9.2 A
Phase
Three
Nominal Efficiency
88.5 %
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Duty Cycle
Continuous
Conduit Box Location
Exterior
Weight
88 lb
No. of Speeds
1
NEMA Design
A
Motor Mounting Position
Horizontal
Conduit Box Position
F1, F2
Shaft Type
Keyway and Internal Thread
Product Type
Pump Motor
Insulation Class
F
Number of Speeds
1
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
18.4/9.2 A
Motor Enclosure Type
Open Drip Proof
Application
Pump
Shaft Design
Keyed
Efficiency Rating
Premium Efficiency (IE3)
Shaft Thread Type
JP
Frequency
60 Hz
NEMA Design Class
A
Bearing Type
Ball
Constant Torque Rating
2:1 Constant Torque

Description

Close-Coupled Pump Motor, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 184JP, Hz 60 Hz, Full Load Amps 18.4/9.2, Height 9 13/16 in, HP 7 1/2, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 14 1/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
